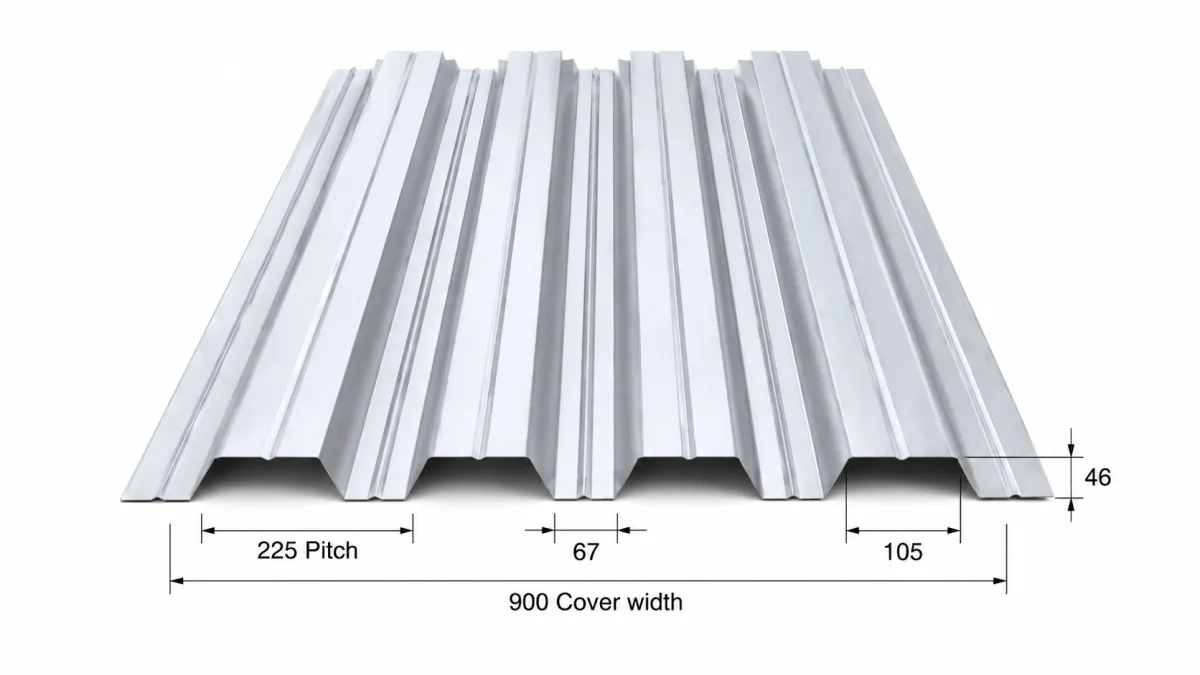

TATA RoofDek D46
900 cover width
AVAILABLE IN PLAN OR COLOURCOAT FINISHES
RoofDek D46 is a 46mm deep trapezoidal roof deck with a 900mm cover width and 225mm pitch, available plain or with web perforations for acoustic absorption.
Capacity depends on span, gauge and span condition. In 0.70mm S220 steel it carries 5.46 kN/m² over a 1.00m single span. Full load/span tables covering all six material specifications, single, double and multi span, are on the datasheet.
The perforated variant uses pattern 4546 — 4.5mm holes at 6.3mm triangular centres, 46% pattern open area, giving 10.7% open area at the exposed soffit. Perforation is to the web only.
Available in Colorcoat HPS200 Ultra® pre-finished steel, galvanised steel and aluminium, 0.70mm to 1.20mm. Contact us for site-specific load calculations.
Watch this short video for a quick explanation!
DURABLE ROOF DECKING FOR EVERY ENVIRONMENT
Durable finish, combined with optional colour coat aesthetics, ensures the profile is long-lasting.
Material Sustainability
Recyclability: Steel components are 100% recyclable at the end of life.
Able to withstand coastal, chemical, and humid condition without the need for maintenance.
Acoustic insulation, enhanced by perforated edges and profile fillers, helping to reduce noise and improve interior comfort.
Aesthetically pleasing finish that complements various architectural styles and provides a clean, attractive finish.

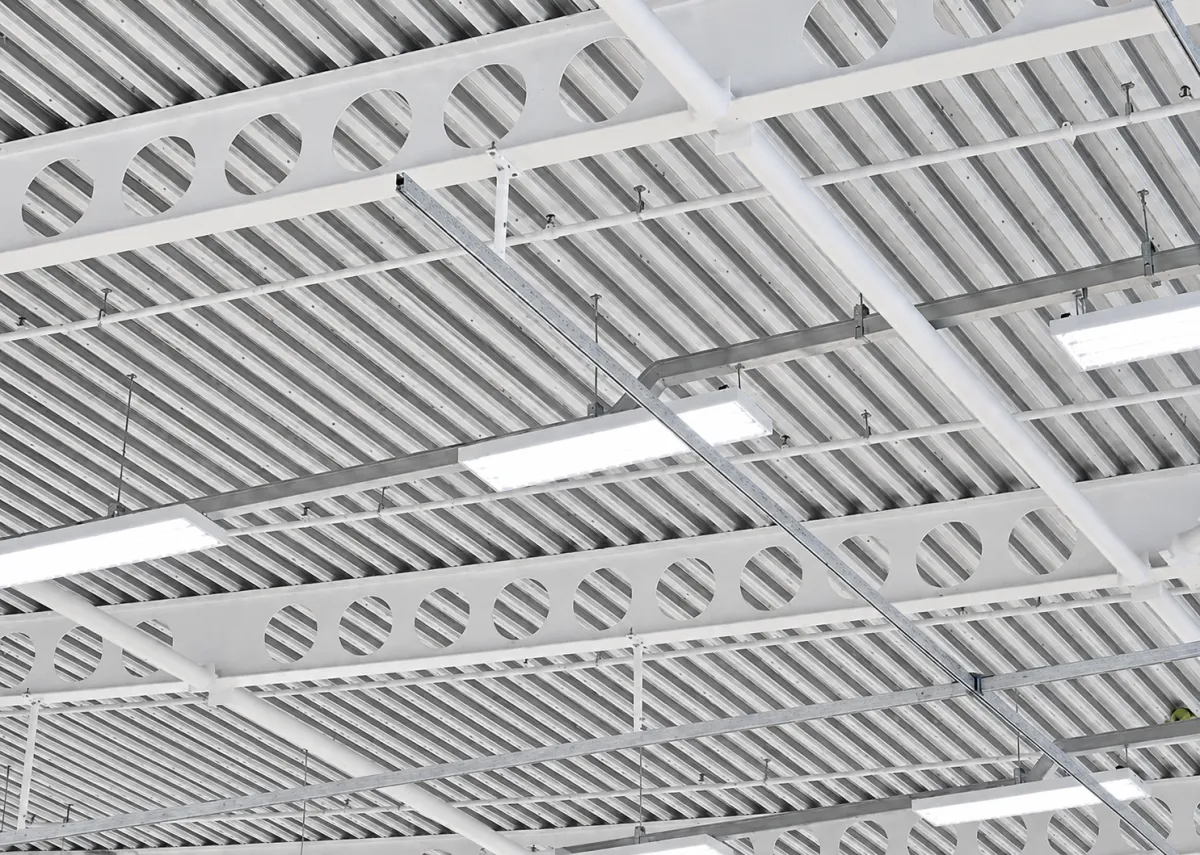

Eliminates ceiling costs entirely while delivering acoustic performance-especially in cost-sensitive projects like education and retail.
Easy to handle for safer onsite logistics.
BUILT TO LAST — COASTAL, CHEMICAL AND HUMID READY
Features
Depth: 46mm
Cover width: 900mm
Pitch: 225mm
Trough width: 67mm
Overall flange: 105mm narrow, wider broad flange option
Bearing width: 100mm on purlin
Benefits
Material Options
Steel S220: 0.70mm thickness
Steel S280: 0.70mm, 0.90mm, 1.16mm
Aluminium Rp0.2 165: 0.90mm, 1.20mm
Pre-finished: Colorcoat HPS200 Ultra (single or double-sided)
Load & Deflection
Imposed load: Span/200 deflection limit
Wind suction: Span/150 deflection limit
Internal web shear: 34–88 kN/m solid (varies by material and gauge)
End shear capacity: 4–14 kN/m for bearing connection design
Perforated Variant (4546)
Hole size: 4.5mm diameter
Triangular centres: 6.3mm
Open area: 46% of web, 10.7% of soffit
Absorption: Effective with acoustic insulation above
Spans: 3.00–3.40m typical (check properties)
Installation & Jointing
Side laps and end laps: Self-drilling screw fastening
Bearing fasteners: 2–4 screws per support, depending on design
Speed of fix: Typical rates 8–12 m² per person per day
Site preparation: Minor; minimal handling damage risk
Applications
Building Types and Applications
The D32S system is ideally suited for lightweight commercial applications:
Lightweight commercial buildings
Industrial facilities with purlin systems
Educational buildings
Retail and office developments
Applications requiring economical shallow profiles
Span Range: 1.2m to 2.8m for typical applications
TECHNICAL SPECIFICATION
Technical
Environmental & Compliance
Fully recyclable steel and aluminium
BRAAM and BRE environmental data available
Complies with BS EN 14994 and relevant building standards
Pre-finished options: VOC-compliant paint systems
For information, please download our datasheet, or click here
