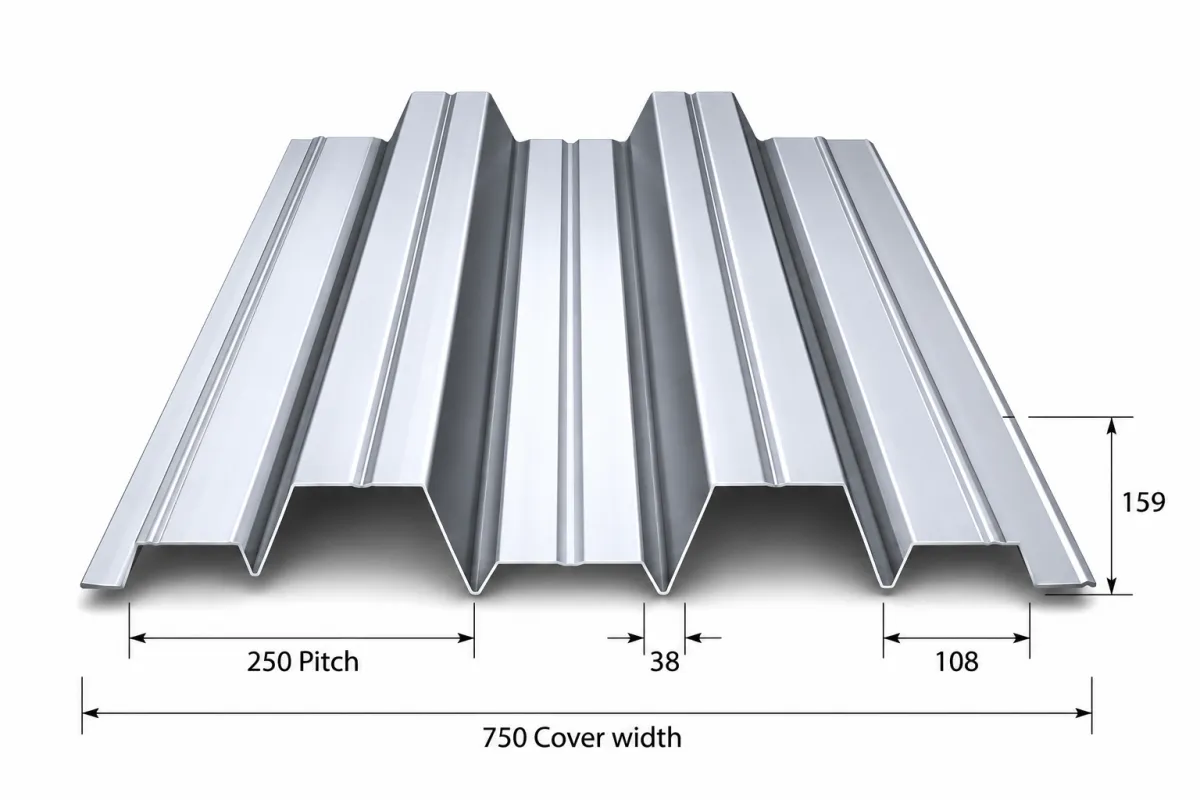

TATA D159 Roof Profile Introduction

The TATA D159 Roof Profile is an advanced solution designed for robust structural roofing needs, offering versatility and performance for large-scale projects. With a

span capacity of up to 7.5 metres this profile combines strength, durability, and efficiency, making it suitable for industrial and commercial buildings. Depending on material thickness, the D159 can accommodate loadings of up to 7.5 kN/m² providing reliability under high live and dead load conditions.

Achieving Performance with Overlapping Sheets

The D159 profile optimises its load-bearing capacity through the strategic use of overlapping sheets, which enhances stability and reduces deflection. This feature allows for efficient structural design, minimising the need for additional support and expediting construction timelines.

Acoustic Performance and Finishes

For projects in noise-sensitive environments, the D159 profile can be specified with

perforated edges and profile fillers

, ensuring excellent acoustic insulation. These features absorb and reduce noise transmission, meeting stringent building standards and creating a more comfortable internal environment.

Aesthetic Options with Colourcoat

The TATA D159 can be finished with

Colourcoat® pre-finished steel

, offering a wide range of colours and textures for architectural flexibility. This finish not only enhances the visual appeal of the building but also provides superior resistance to corrosion and weathering, ensuring a long-lasting, low-maintenance solution.

Key Benefits of the TATA D159 Roof Profile:

Span Capability: Up to 7.5 metres, reducing the need for intermediate supports.Load Capacity: Handles heavy-duty loads up to 7.5 kN/m², ideal for demanding applications.Acoustic Properties: Features perforated edges and fillers for noise reduction and sound absorption.Customisable Finishes: Colourcoat options offer durability and a range of aesthetic choices.Efficient Installation: Overlapping sheets streamline the construction process, saving time and resources.

Whether your project requires enhanced acoustic performance, high load-bearing capacity, or a visually striking finish, the D159 profile delivers on all fronts. Download the technical manual for comprehensive specifications or contact our team for tailored calculations and advice specific to your project.

NOTE only available in 1.2mm and 1.5mm gauges
