Trapezoidal 60 (TR60)
1000mm cover width
PLAIN Galvanised as standard, or MAGNELIS OR COLOURCOAT FD finishes available on request for aggressive environments.
Nationwide delivery
24 hour delivery
Quotes in 24 hours
PLAIN OR COLOURCOAT
TR60 - Ribdeck Type profile
The TR60 Metal Deck Profile combines innovation, versatility, and reliability, offering construction professionals a superior flooring solution. Ideal for projects ranging from commercial developments to domestic renovations, its intelligent design supports faster build times, reduced costs, and enhanced safety.
With unpropped spans in excess of 3.5 metres readily achievable, TR60+ is a practical and cost-effective choice for first-floor construction and any scheme where installation speed and reduced sheet count are priorities. The 1,000mm panel width covers the same floor area with a third fewer sheets compared with standard 600mm profiles.
Watch this short video for a quick explanation!
Exceptional Spanning Capability:
The TR60 achieves spans of up to 4.0 metres unpropped, reducing the need for secondary beams and creating flexible open spaces. Its long-span performance simplifies structural design while cutting material and labour costs.
Optimised Slab Depth:
Supports slab depths of 120–150mm, delivering robust structural integrity while minimising material usage. This balance ensures cost-effective, sustainable construction.
Superior Fire Resistance:
With a fire resistance rating of up to 120 minutes, the TR60 meets strict safety regulations. It ensures optimal protection for both commercial and residential buildings, offering peace of mind for clients and contractors alike.
Efficient and Lightweight Design:
Featuring a 1000mm cover width, the TR60 is lightweight and easy to handle, ensuring quicker, safer installation. Its design reduces strain on workers and streamlines the construction process, making it a preferred choice for busy job sites.
Sustainability at its Core:
Engineered to minimise concrete and steel usage the TR60 reduces the overall environmental impact of your project. Its lightweight nature lowers transportation emissions, supporting green construction goals.
With the fast installation that comes from covering more area per sheet, TR60+ consistently delivers a lower installed cost per m² than narrower trapezoidal profiles on comparable spans.
DESIGNED FOR BEST VALUE
Features

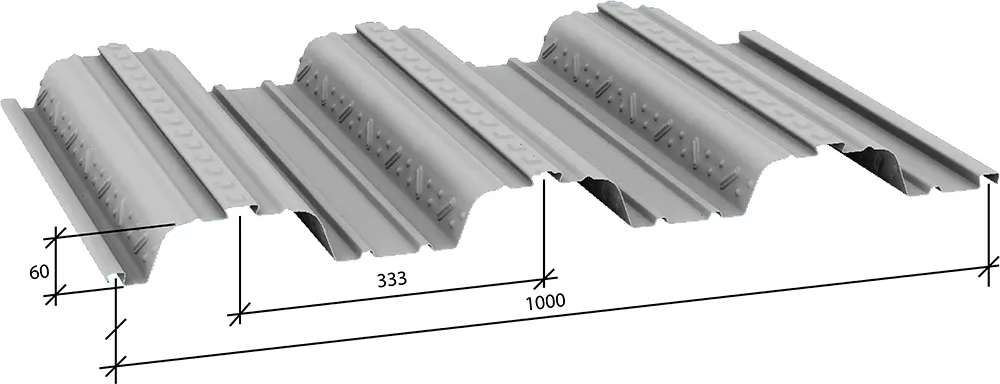

Profile depth: 60mm (72mm to top re-entrant)
Cover width: 1,000mm
Available gauges: 0.9mm, 1.0mm, 1.2mm
Steel grades: S350, S450
Section properties are calculated with supporting testing in accordance with Eurocode 3.
Benefits
60mm deep trapezoidal profile with 1,000mm cover width, reducing sheet count by up to a third compared with 600mm profiles
Unpropped spans in excess of 3.5m achievable in S350 and S450 grade
Reduced concrete volume compared with re-entrant profiles at equivalent slab depths
Trough stiffeners positioned for central shear stud placement, minimising site checking
Soffit wedge nut fixings available with load capacity up to 1kN
Acoustic Robust Solution in accordance with Robust Standard Details
TAB-Deck fibre concrete option available as an alternative to fabric mesh reinforcement
Available in 0.9mm, 1.0mm, and 1.2mm gauges in S350 and S450 grade
CE and UKCA certified, section properties to Eurocode 3
Applications
First-floor construction in commercial, residential, and mixed-use buildings
Large floor plates where reducing sheet count and installation time is a programme priority
Schemes requiring reliable unpropped spans on first floors where propping from below is impractical
Any project where the wider 1,000mm sheet meaningfully reduces installation cost per m²
TECHNICAL SPECIFICATION
Technical
Finishes and Options
Galvanised Z275 — standard coating, suitable for most internal applications
High durability ZM310 — enhanced zinc-magnesium coating for more demanding environments
TAB-Deck fibre concrete — available as an alternative to fabric mesh, simplifying site reinforcement operations
For more information, please download our datasheet, or click here
ENQUIRY HERE
Ready to Transform Your Next Project?
With materials delivered on-site within hours, days or weeks and expert support, including bespoke layout drawings tailored to your needs, the TR60 ensures a seamless construction experience.
Contact us today to see how the TR60 Metal Deck Profile can make your next project smarter, safer, and more efficient.
