ComFlor 60 (CF60) offers a 600mm cover width
PLAIN Galvanised as standard or MAGNELIS OR COLOURCOAT FD finishes available on request for aggressive environments.
Nationwide delivery
24 hour delivery
24 hour support
PLAIN OR COLOURCOAT
CF 60 - Ribdeck Type profile
CF60 Metal Deck Profile: Setting the Standard in Efficiency and Performance
The CF60 Floor Metal Deck Profile combines innovation, versatility, and reliability, offering construction professionals a superior flooring solution.
Ideal for projects ranging from commercial developments to domestic renovations, its intelligent design supports faster build times, reduced costs, and enhanced safety.
Watch this short video for a quick explanation!
Exceptional Spanning Capability:
The CF60 achieves spans of up to 3.5 metres unpropped, reducing the need for secondary beams and creating flexible open spaces. Its long-span performance simplifies structural design while cutting material and labour costs.
Optimised Slab Depth:
Supports slab depths of 120–150mm, delivering robust structural integrity while minimising material usage. This balance ensures cost-effective, sustainable construction
Superior Fire Resistance:
With a fire resistance rating of up to 120 minutes, the CF60 meets strict safety regulations. It ensures optimal protection for both commercial and residential buildings, offering peace of mind for clients and contractors alike.
Efficient and Lightweight Design:
Featuring a 600mm cover width, the CF60 is lightweight and easy to handle, ensuring quicker, safer installation. Its design reduces strain on workers and streamlines the construction process, making it a preferred choice for busy building sites.
Sustainability at its Core Engineered to minimise concrete and steel usage, the CF60 reduces the overall environmental impact of your project. Its lightweight nature lowers transportation emissions, supporting green construction goals.
Closed-End Options:
Optional closed ends enhance fire safety and reduce concrete consumption. They also provide a polished finish for areas with exposed soffits, delivering both functionality and aesthetic appeal.
DESIGNED FOR
CONSTRUCTION PROJECTS
Features
Why Choose the CF60 Metal Deck Profile?
Faster Construction Times: Efficient spanning and easy installation reduce build schedules.
Cost-Effective: Optimised design cuts material, transport, and labour costs.
Reliability You Can Trust: Built to exceed performance and safety expectations on every project.

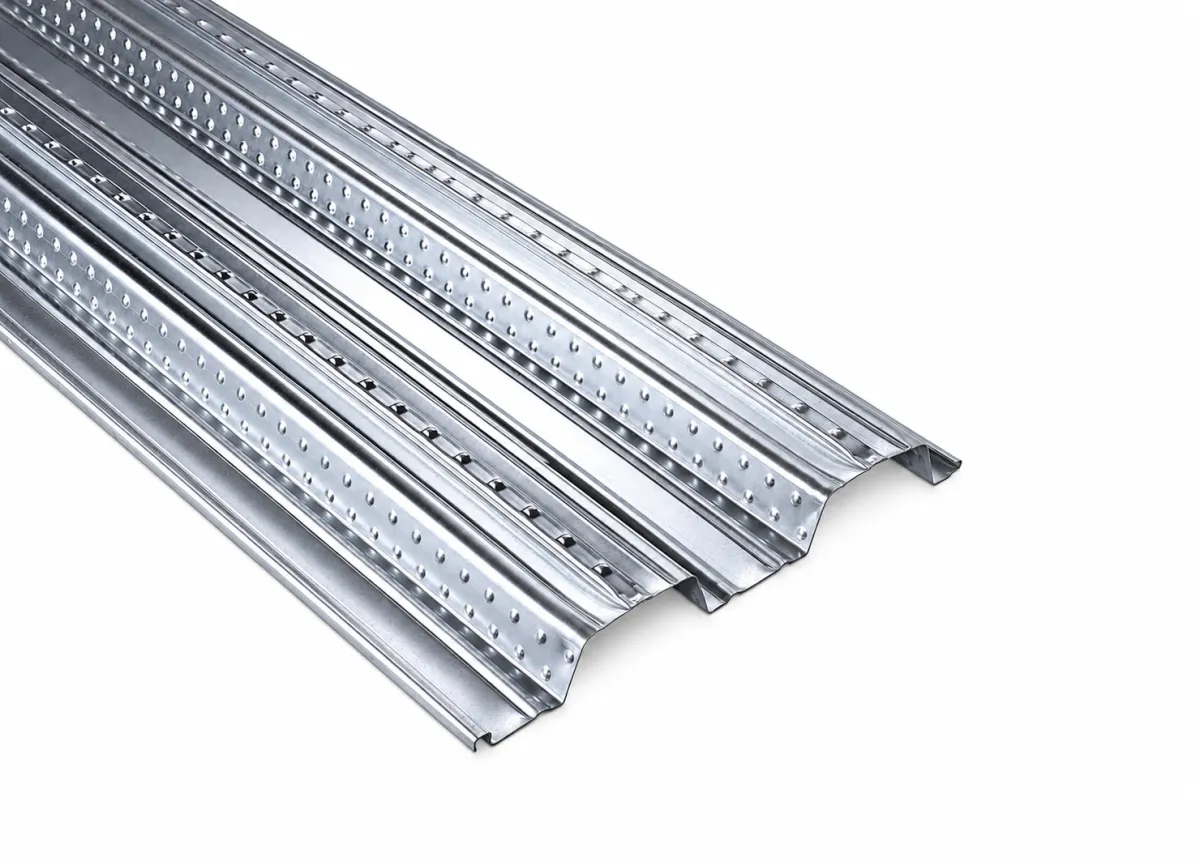

Profile Depth: 60 mm ribbed trapezoidal profile with a combined re-entrant dovetail shape for superior shear connection.
Cover Width: 600 mm effective width ensures efficient coverage and nesting for transportation.
Material Specification: Hot-dip galvanised steel to EN 10326 S350GD+Z275, ensuring minimum yield strength of 350 N/mm² and robust corrosion protection.
Available Thicknesses: 0.90 mm, 1.00 mm, and 1.20 mm steel gauges to suit various loading and span requirements.
Finish Options: Standard hot-dip galvanised (Z275) finish for durability.Optional Colorcoat HPS200 Ultra® and Colorcoat Prisma® pre-finished steel available on request for enhanced corrosion resistance and aesthetics.
Fire Resistance: Up to 120 minutes fire rating achievable with appropriate slab thickness and reinforcement, complying with EN 13501-2 and UK Building Regulations.
Acoustic Performance: Supports noise reduction when combined with suitable slab design and finishes, ideal for multi-storey environments.
Shear Connection: Central stud placement in dovetail troughs maximises composite action and improves structural efficiency.
Soffit Finish: Ribbed soffit profile allows for easy fixing of services and ceilings using low-cost hangers.
Benefits
Sustainability & Environmental Benefits
• Reduces embodied carbon and material costs through lower concrete volume.
• Cuts steel tonnage and transport emissions with a lightweight profile.
• Extends service life and minimises maintenance with durable galvanised coatings.
• Enhances occupant comfort and safety with excellent acoustic and fire performance.
Carbon Footprint Advantage
• Quantifiable embodied carbon savings per square meter.
• High recycling potential and favourable end-of-life profile.
• Benchmark figures available that outperform alternative flooring systems.
ComFlor60 Fire and Acoustic Performance
ComFlor 60’s ribbed profile and re-entrant dovetail design contribute to excellent fire resistance and acoustic properties:
- Fire tests confirm up to 120 minutes of fire resistance with a suitable
slab thickness and reinforcement.
- The profile’s shape allows for efficient heat transmission control,
reducing slab depth for a given fire rating.
- Acoustic performance depends on slab build-up but is enhanced by
the profile’s geometry and concrete mass.
Applications
Applications Across All Sectors
The CF60 is designed to adapt to a variety of projects, including:
Commercial spaces: Office buildings, retail centres, and industrial facilities.
Domestic properties: Extensions, renovations, and new builds.
Architectural projects: High-specification designs demanding superior performance and aesthetics.
TECHNICAL SPECIFICATION
Technical
Underfloor Heating Compatibility: Flexible Solutions for All Steel Deck Profiles
Modern construction demands floor systems that not only provide structural strength but also support efficient, comfortable heating solutions. All steel decking profiles, including MetFloor, ComFlor, and similar composite floor decks, are fully compatible with a wide range of underfloor heating (UFH) systems, making them ideal for new builds, refurbishments, and extensions.
Low-Profile Heating Systems for Minimal Floor Height Impact
Ultra-low profile UFH solutions can be installed directly over steel decking with minimal floor build-up, often as little as 15mm. This is perfect for projects with limited ceiling heights or where retrofitting heating is required without raising floor levels significantly. These slimline systems deliver efficient, even heat distribution while preserving interior space and design flexibility.
Integrated and Structural UFH Panels
For suspended timber or composite steel floors, integrated underfloor heating panels combine structural decking with embedded pipework. Systems like Nu-Deck® and similar products replace traditional floorboards or overlay steel decks, speeding up installation and ensuring optimal thermal performance
Need full specs, fire performance, and span/load data?
Visit the full technical profile page here to view finishes, Eurocode compliance, and application guidance.
