SR35+

900mm cover width

PLAIN galvanised as standard, with polyester white or additional coatings available for added durability in aggressive environments.

CALL NOW: 01787 275 055

Nationwide delivery

24 hour delivery

24 hour support

PLAIN OR COATED

SR35+ - Trapezoidal Roof Deck Profile

The SR35+ is ideal for roofing projects requiring a balance of strength, speed, and coverage. Its clean underside can remain exposed for an industrial aesthetic or finished with a polyester white coating for brighter interiors.

The sinusoidal profile is the industry standard for single-skin roofing. The 35mm depth delivers excellent spanning capability with minimal weight.

A wide range of finishes can be applied for enhanced performance or visual appeal, depending on project requirements.

Watch this short video for a quick explanation!

ROOF DECKING BUILT FOR LARGE-SCALE PROJECTS

Strong spanning: a 35mm depth in 0.7mm, 0.9mm or 1.2mm gauge gives dependable spans across typical purlin spacings, reducing secondary supports for programme and cost efficiency.
Coverage & handling: 900mm cover width maximises coverage per panel to cut laying time and speed up installation, while the lightweight design (gauge-dependent) keeps handling simple yet strong under load.
Durability & corrosion protection: supplied hot-dip galvanised (Z275) or polyester-coated for excellent corrosion resistance, suiting everything from standard roofing to more demanding environments.

Simplified fixing: 150mm end laps with main fixings in every trough for a straightforward, secure install.
Optimised handling: side laps not always essential and side supports at 450mm centres make installation efficient and adaptable.
Length flexibility: supplied in lengths up to 12m, reducing joints and speeding up programme delivery.
Speed: fixing every trough, 150mm end laps and intermediate fasteners in alternate troughs mean fast installation and lower labour costs.

LONG SPANS, FAST INSTALL — BUILT FOR SCALE

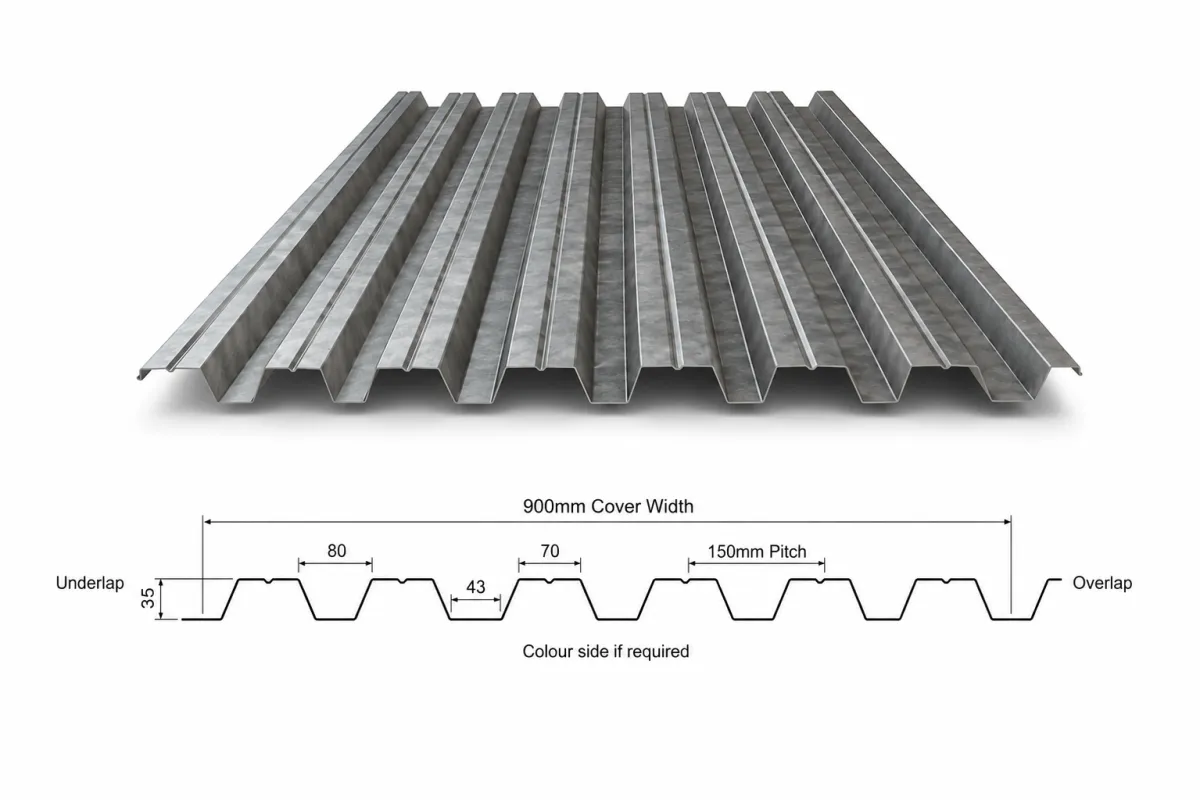

Features

Cover Width

900mm

Depth

35mm

Pitch (Wave)

150mm

Crown Height

70mm

Valley Height

43mm

Maximum Length

12m

Available Gauges & Coatings

Standard thickness options in S350 high-yield steel

0.7mm

Galvanised Z275: 7.58 kg/m²

Polyester Z150: 7.43 kg/m²

0.9mm

Galvanised Z275: 9.76 kg/m²

Polyester Z150: 9.61 kg/m²

1.2mm

Galvanised Z275: 13.03 kg/m²

Polyester Z150: 12.88 kg/m²

Coatings & Fire Rating

Galvanised Z275: 275g/m² coating, 25+ year service in most UK environments, corrosion protection

Polyester White Z150: 150g/m² coating, aesthetic finish, Class 1 / Class 0 fire rated (upon specification)

Fire Rating: Class 1 standard; Class 0 available (consult design team)

Benefits

Proven system: The sinusoidal profile is the industry standard for single-skin roofing. The 35mm depth delivers excellent spanning capability with minimal weight.

Flexibility: 900mm cover width and multiple gauge options mean you specify exactly what your structure needs — no over-engineering, no waste.

Durability: Galvanised or polyester coating options. Z275 galvanising provides 25+ year service in most UK environments. Class 1 / Class 0 fire rating meets building regulations.

Cost-effective: The SR35+ delivers strength-to-weight performance at the right price point for agricultural, industrial and commercial projects.

Applications

Agricultural

Livestock sheds, grain storage, polytunnels, open-sided structures.

Industrial

Factories, warehouses, workshops, loading canopies.

Commercial

Retail canopies, car ports, garden centres, nurseries.

TECHNICAL SPECIFICATION

Technical

Spanning & Load Capability

Typical span range: 1.2m to 2.8m (dependent on gauge, load and deflection limit)

Deflection limits: Span/200 for permanent loads (strict), Span/90 for combined permanent + variable.

Design factor: 1.5 on yield (building regulations compliance)

Bearing: Minimum 60mm on supports (prevent trough crushing)

Fixing & Lap Details

Fixing: Fastener every trough (not every crown). Stainless or galvanised fasteners; sealant washers where required for water management.

End lap: 150mm minimum (two trough intervals). Allow for building movement

Intermediate fasteners: Every alternate trough on intermediate supports for multi-span roofs.

Side lap: Not essential for single-skin, but recommended in high-wind or high-moisture environments.

Side support spacing: Maximum 450mm centre-to-centre on the edges of the roof.

Sealant: Polyurethane or silicone – situational. Consult our technical team for your environment.
