ComFlor 46 (CF46)
900mm cover width
PLAIN Galvanised as standard, or MAGNELIS OR COLOURCOAT FD finishes available on request for aggressive environments.
Nationwide delivery
24 hour delivery
24 hour quote
PLAIN OR COLOURCOAT

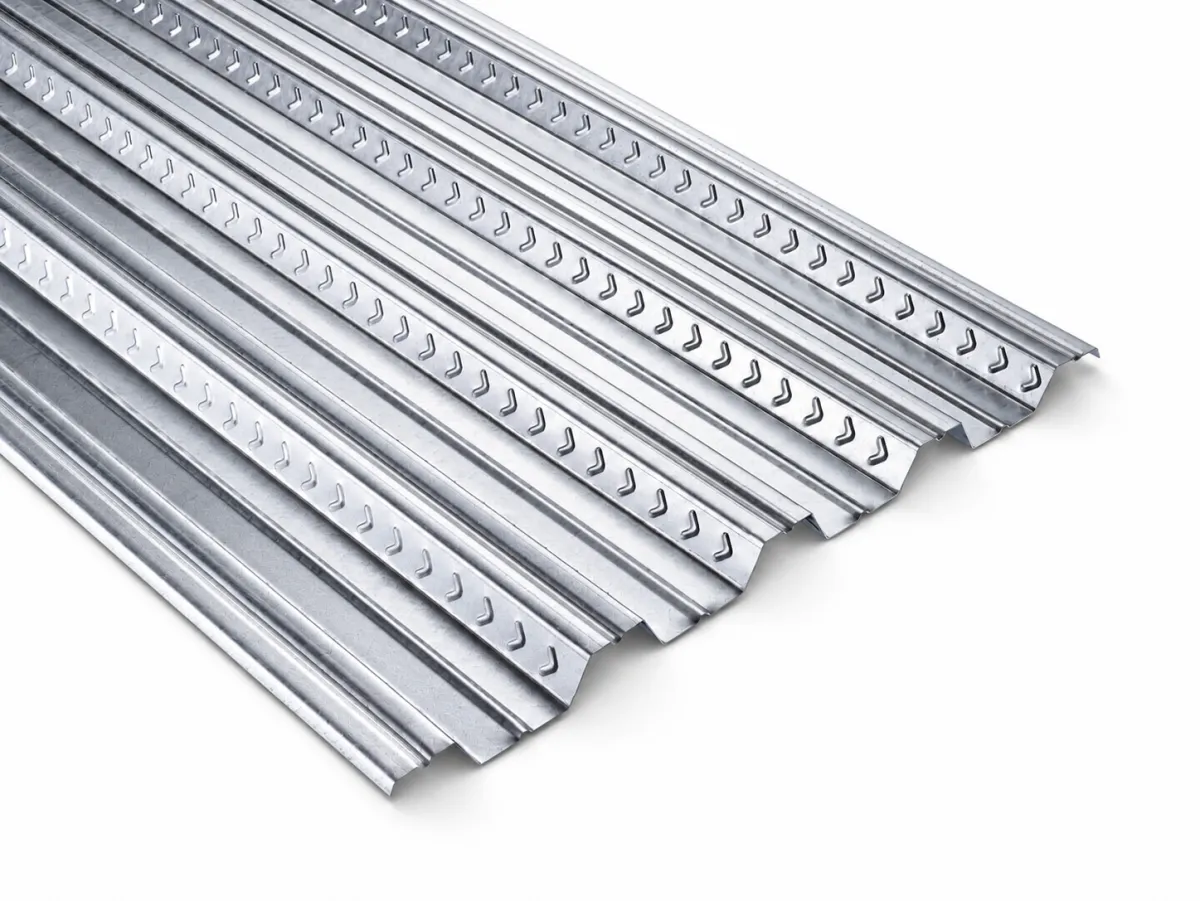

CF 46 - Ribdeck Type profile
The ComFlor 46 Metal Deck Profile is a reliable and efficient solution, engineered to meet the demands of both large-scale commercial projects.
The 900mm cover width is 50% wider than the 600mm profiles elsewhere in the range. Every row of deck covers more floor area per sheet, which reduces joint lines, speeds installation, and lowers the labour required to achieve a given area of completed deck. The nestable profile means sheets stack tightly inside one another, packing more square metres into every delivery. On a constrained urban site where crane time is limited and logistics are tight, or on an export project where freight cost is a significant line item, those characteristics have direct commercial value.
Its compact, lightweight design makes it ideal for challenging access sites and ensures quick, hassle-free installation.
Watch this short video for a quick explanation!
Efficient Spanning Ability
With unpropped spans of up to 3.0 metres, the CF46 is perfect for projects requiring lighter structures and reduced support beams. It enables flexibility for both commercial and residential construction.
Optimised Slab Depth:

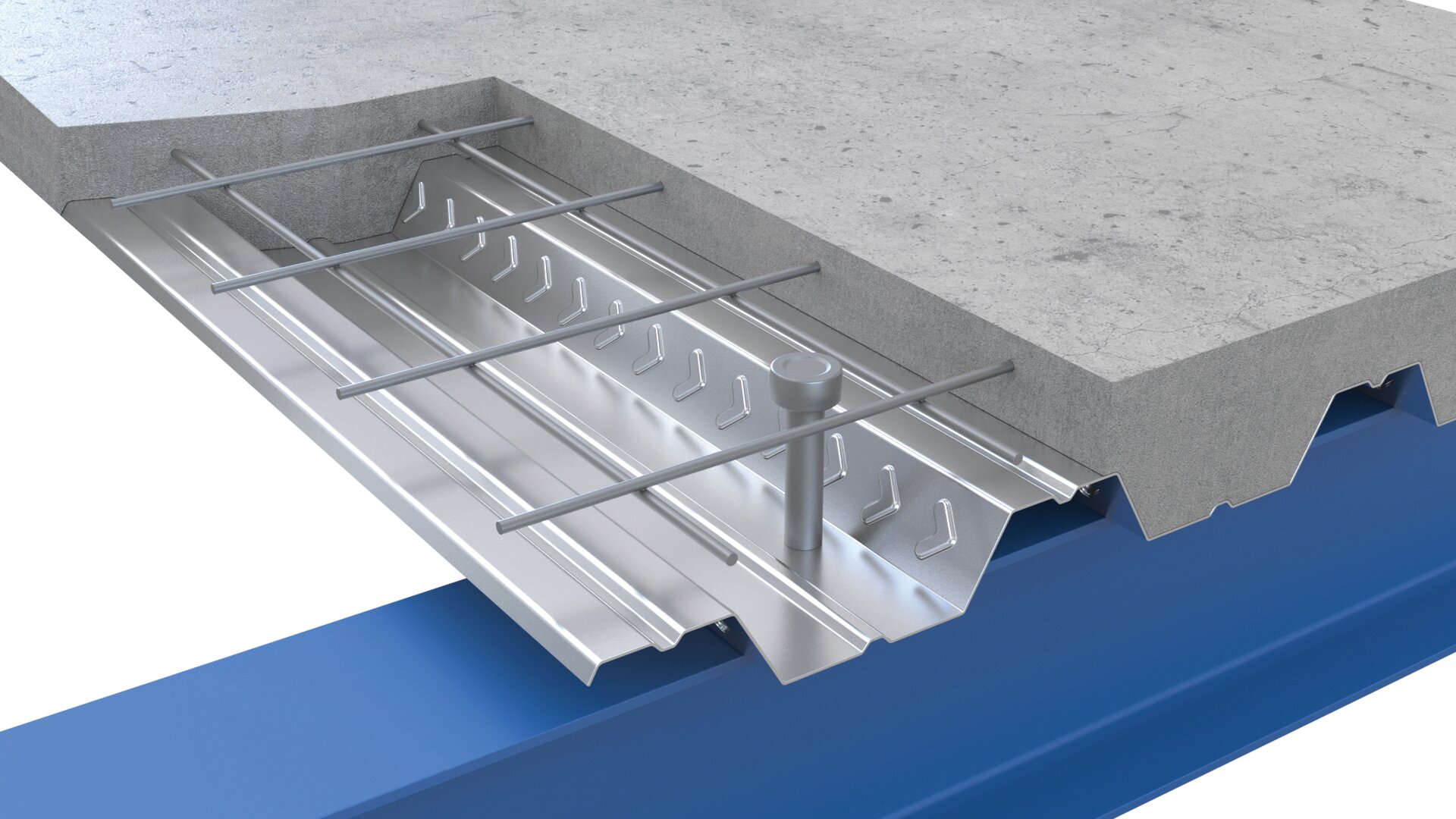

Achieves slab depths ranging from 100–130mm, ensuring excellent strength while minimising concrete use. It’s often used as an alternative to Lewis Deck due to its availability, with typical delivery times within two weeks and fewer components to manage on site – making it a highly convenient option.
Fire Resistance
The CF46 offers fire resistance of up to 90 - 120 minutes when paired with appropriate reinforcement and slab depths, providing peace of mind for both residential and commercial applications.
Perfect for All Scales of Development
Whether you're working on a residential renovation, an extension, or a larger commercial space, the CF46 delivers a professional finish. Its lightweight yet durable structure ensures quick construction times without compromising on quality or safety.
Versatility Across Applications
From high-rise developments to domestic renovations and new builds, the CF46 adapts to a variety of settings, offering an economic and environmentally friendly solution for diverse projectsCompliance with Design Codes and Standards (see technical).
DESIGNED FOR SMALL
CONSTRUCTION PROJECTS
Features
Profile depth: 46mm
Cover width: 900mm
Pitch: 225mm
Crown width: 67mm
Valley width: 105mm
Available gauges: 0.9mm, 1.2mm
Steel grade: S280 (Galvatite Z275)
Section properties conform to BS 5950.
Design and load/span tables are to British Standard values. ComFlor 9 software supports British Standard design for ComFlor 46.
Benefits
46mm deep trapezoidal profile, 900mm cover width for fast floor coverage.

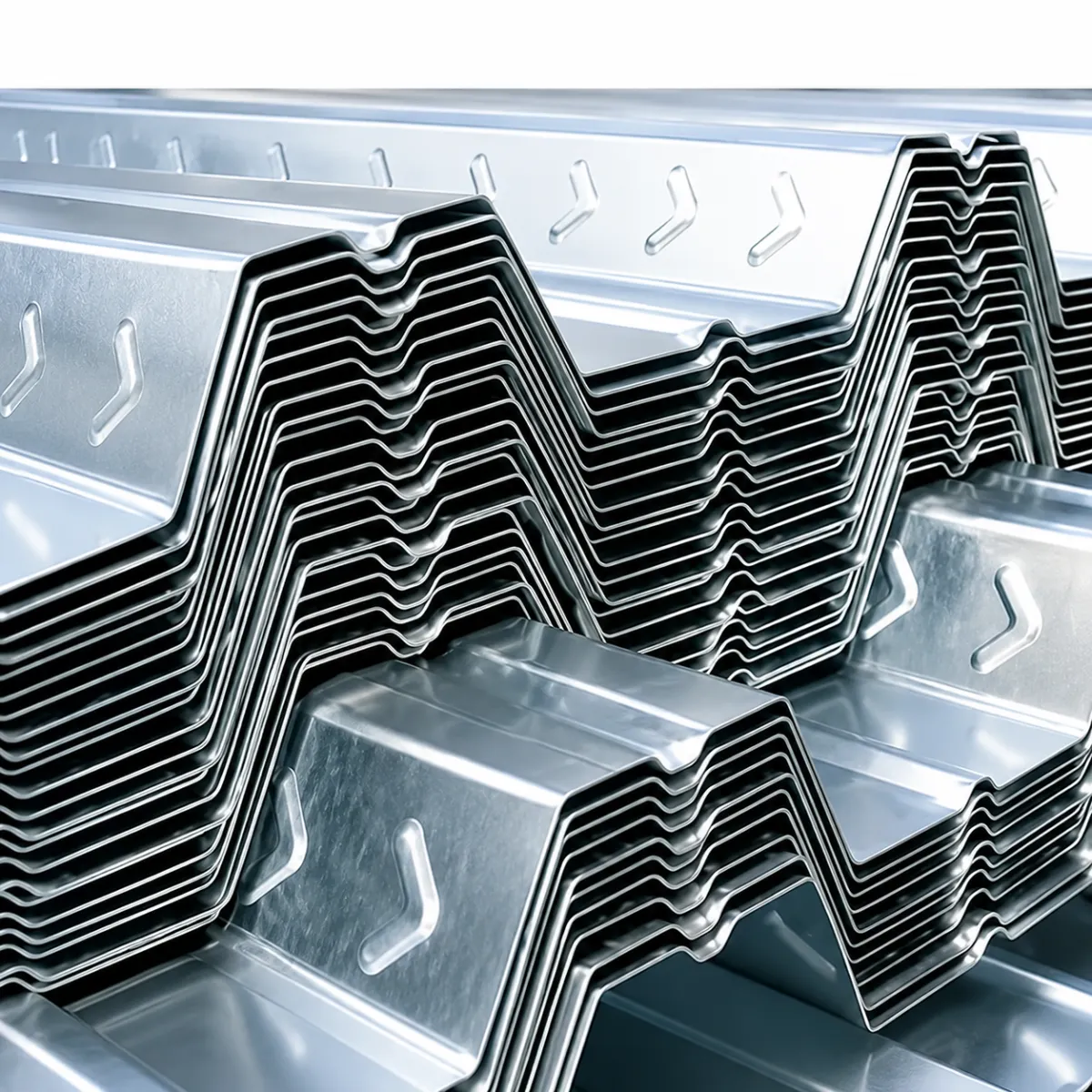

Nestable profile shape stacks tightly for low transport cost and more m² per delivery.
As simple and quick to install as a roof deck, with no specialist laying requirements.
Wide 900mm cover reduces joint lines and installation time per m².
Economical concrete usage: lower cost compared to re-entrant profiles at equivalent slab depths.
Available in 0.9mm and 1.2mm gauges in S280 grade steel.
Designed to British Standard values, making initial checks straightforward.
Suitable for export and difficult access sites: more floor area fits per container or lorry
CE certified
Applications
Smaller commercial and residential projects where the structural demands are straightforward and programme and cost efficiency are the primary drivers.
Refurbishment and extension work on existing steel-framed buildings, particularly where slab weight and cranage must be minimised.
Mezzanine floors and industrial extensions where a simple, economical composite slab is required.
Export projects and difficult access sites where logistics efficiency, nestable transport, and maximum m² per delivery are important.
Sites where crane availability is restricted and a lightweight, wide-coverage deck reduces the number of lifts required
TECHNICAL SPECIFICATION
Technical
Section properties conform to BS 5950.
Load and span tables to British Standard; ComFlor 9 software supports British Standard design for ComFlor 46.
Fire design by Bar Fire Method to British Standard.
Deck material to BS EN 10346 S280GD+Z275.
Anti-crack mesh requirements to BS EN 1994-1-1 Clause 9.8.1(2): minimum 0.1% of concrete section for unpropped, 0.2% for propped.
CE certified.
Supplied in accordance with the BCSA Code of Practice for metal decking and stud welding
For more technical information, please download our datasheet or click here.
